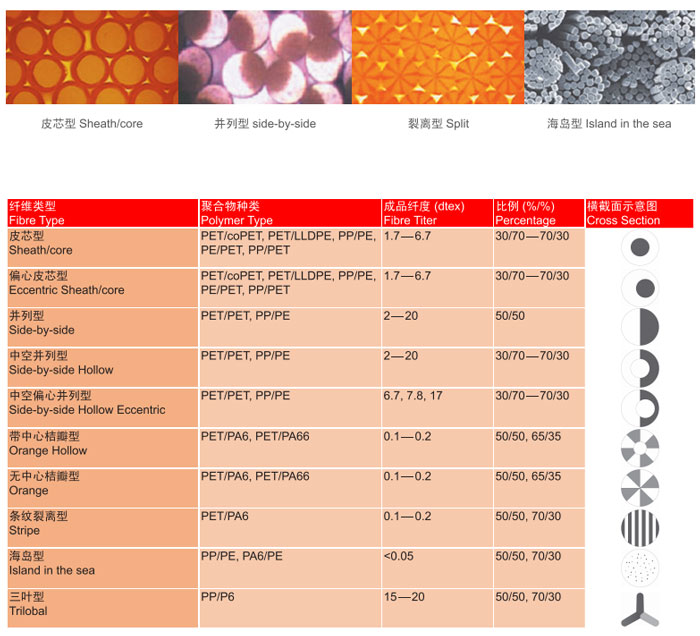

Bicomponent Fibre means two or more polymer that cannot be mixed together at fibre cross section. Mainly can be divided into Sheath/core, Split, Island in the sea, Trilobal and Mixture type, etc.
The Bicomponent Fibre plant takes two different Chips as raw material, with high pressure melt spinning process engineering and VFD controlled Spinning & Stretching process engineering to produce Bicomponent Staple Fibre. Single plant capacity is 10T.P.D. to 50T.P.D.
When designing Bicomponent Equipment, our Engineers had fully considered the differences like Inherent Viscosity, Melt Point, fluid characteristics between different polymers. Based on this, excellent Spinning System design come to come to fulfillment. From the Extruder, two piece melt flow delivered to every spinning position of spin beam is uniform, equal quantity, same speed.
Equipment Technical Data
| Titer Range | dtex | 2.2-13.2 |
| No. of Spinning Pos. | nos. | 8, 12, 16, 20, 24 |
| Spinning Pitch | mm | 550, 600, 700, 750 |
| Plant Capacity | T.P.D. | ≤50 |
| Spinneret dia. | mm | Φ180, Φ220, Φ240, Φ328 |
| Spinning Mechanical Speed | m/min | 1450 |
| Spinning Processing Speed | m/min | 1350 |
| Stretching Mechanical Speed | m/min | 220 |
| Stretching Processing Speed | m/min | 210 |
| Total Tow Titer at Stretching | dtex | ≤2,500,000 |
| Stuffer Box Width | mm | ≤300 |
| Cutting Length | mm | 25, 32, 38, 51, 64, 76, 101 |
| Bale Weight | kg | 250, 300 |
